AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2
AELAB Tube Roller ATRL-2

AELAB Tube Roller ATRL-2

Model NO.
ATRL-2
+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.
+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.
Quantity:

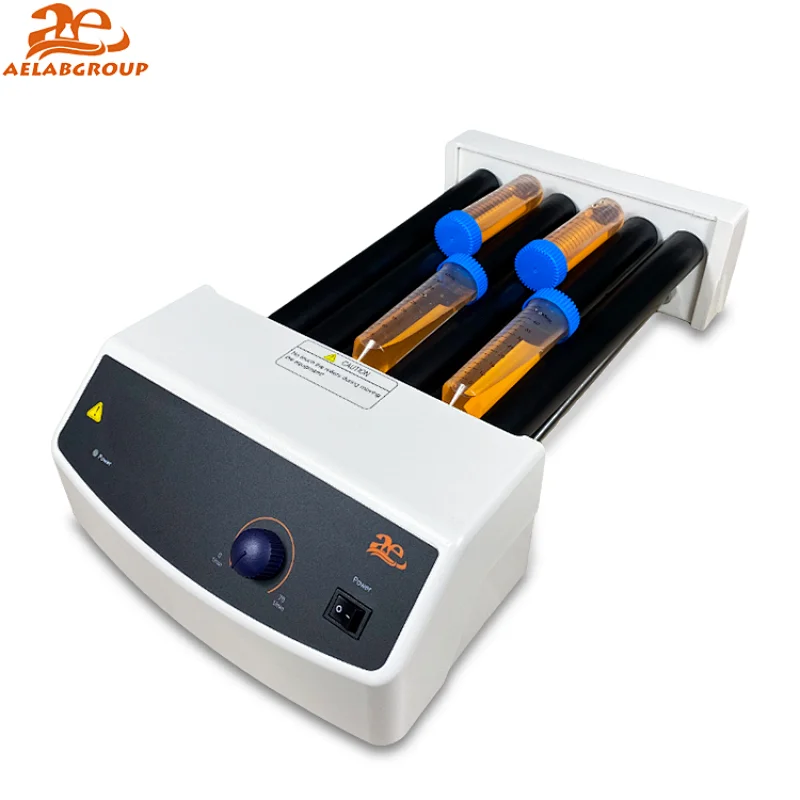

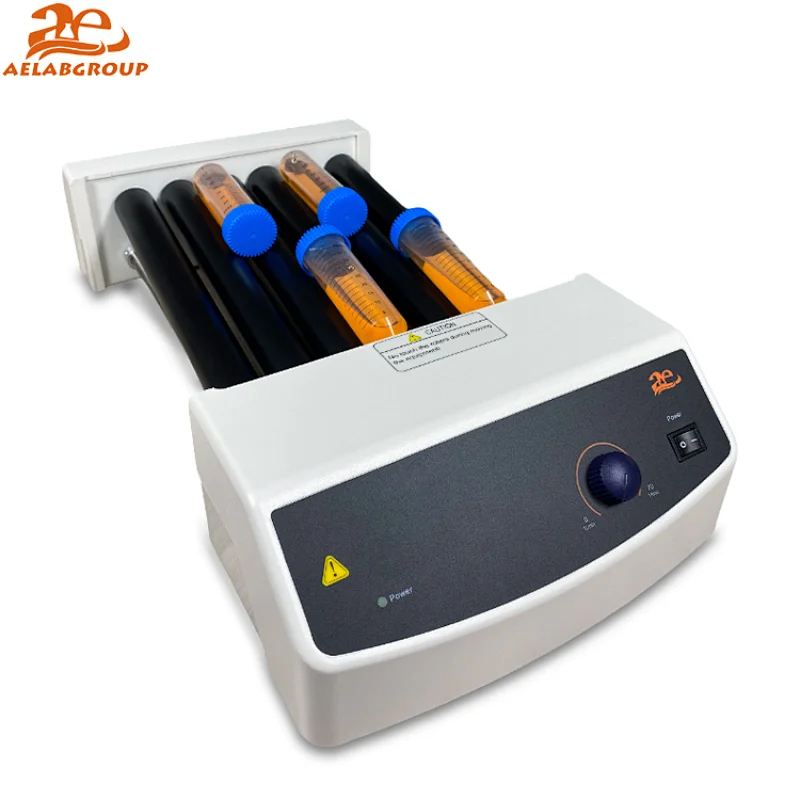

AELAB Tube Roller ATRL-2

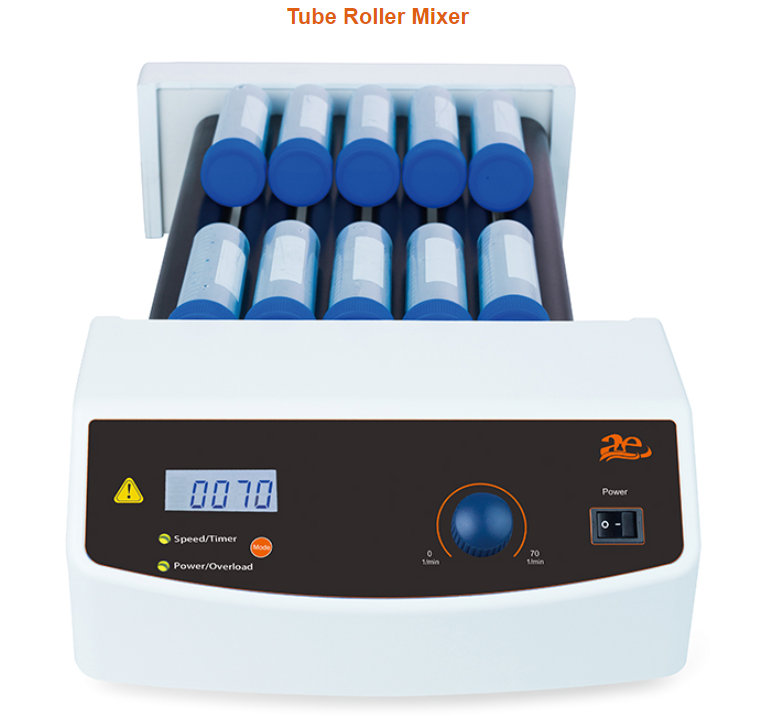

Tube Rollers are used for uniform mixing of blood samples, viscous liquids, and whole blood components in the anticoagulation tubes or bottles. These rollers can mix samples in any type of liquid containers. Tube rollers are microprocessor controlled with digital timer.

Features:
+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.
+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.


Technical Specifications:

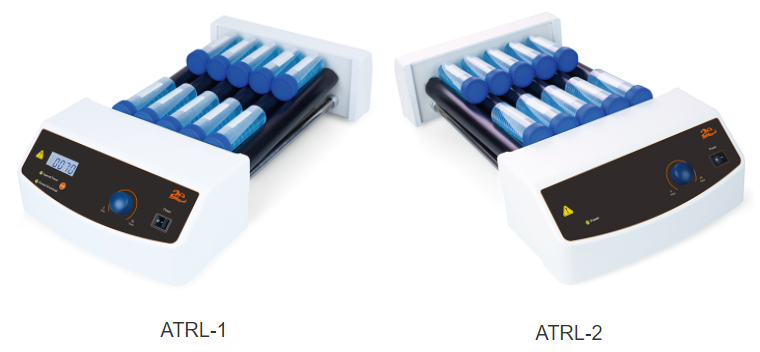

SpecificationsATRL-1ATRL-2
Amplitude24mm24mm
Motor typeDC motorDC motor
Rocking motionRocking and rollingRocking and rolling
Amplitude24mm24mm
Max. load capacity4kg4kg
Number of rollers66
Roller size[length]280mm280mm
Speed range10 -70rpm0-70rpm
Speed displayLCDScale
TimerYes--
Timer displayLCD--
Time setting range1-1199min--
Operation modeContinuous/timerContinuous
Voltage100-240V,50/60Hz100-240V,50/60Hz
Power30W25W
Dimension [D×W×H]450×260×120mm450×260×120mm
Weight5.1kg4.5kg
Permissible ambient temperature and humidity5-40°C,80%RH5-40°C,80%RH
Protection classIP21IP21
